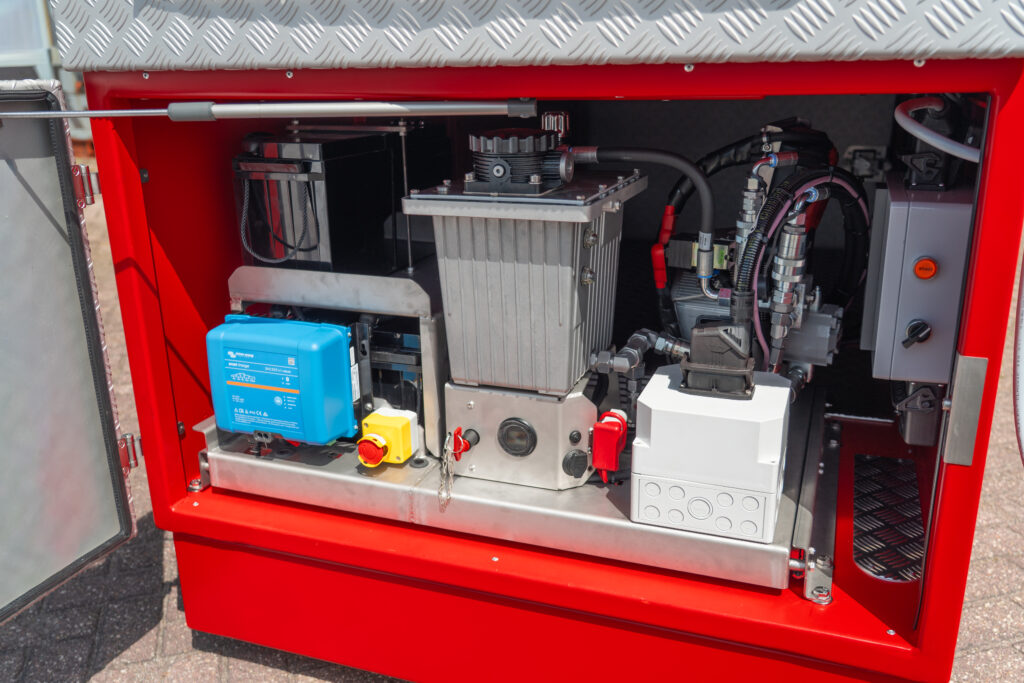

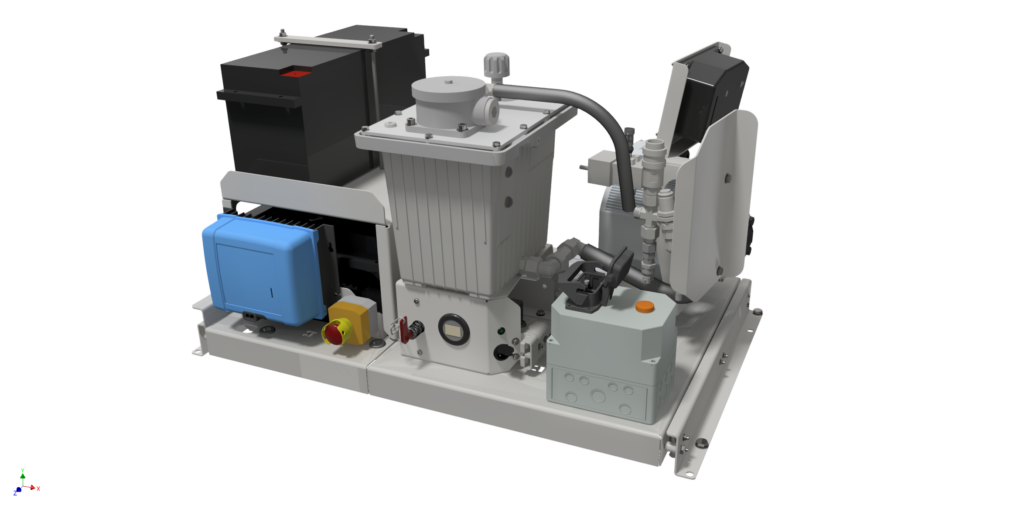

The electrical Powerpack is designed to autonomously power the Hose Layer Containers equipped with a Hose Recovery Unit 200. Under normal conditions, 5000m of 6” deployed hose (50x coupled lengths of 100m) can be retrieved.
When retrieving hose using an electrical Powerpack in combination with an HRU200, the maximum retrieval speed is 0-3 km per hour.
Main Features
Silent
Improved safety due to higher situational awareness
No emission
Full-functional alternative to a diesel power pack
Retrofitting existing autonomous containers is possible
Less maintenance required
Technical specifications
Motor type: electrical
Motor power rating: 5kW
Nominal hydraulic capacity: 15 l/min @ 125 bar (HRU200)
Motor cooling: Air
Storage capacity ranging from 210 Ah to 420Ah.
Battery type & voltage: LiFePO4, 24V
Number of batteries: 2, 3, or 4
Cycle life: >3500 cycles
Months Self Discharge: <3%
Dimensions: 995 x 625 x 570 mm
Weight: 175-225 kg
Ambient Temperature Operation -10°C – +40°C
Options
Turbo charger: 24V/100A, 230V
We recommend choosing the number of batteries to handle twice the container’s hose capacity.

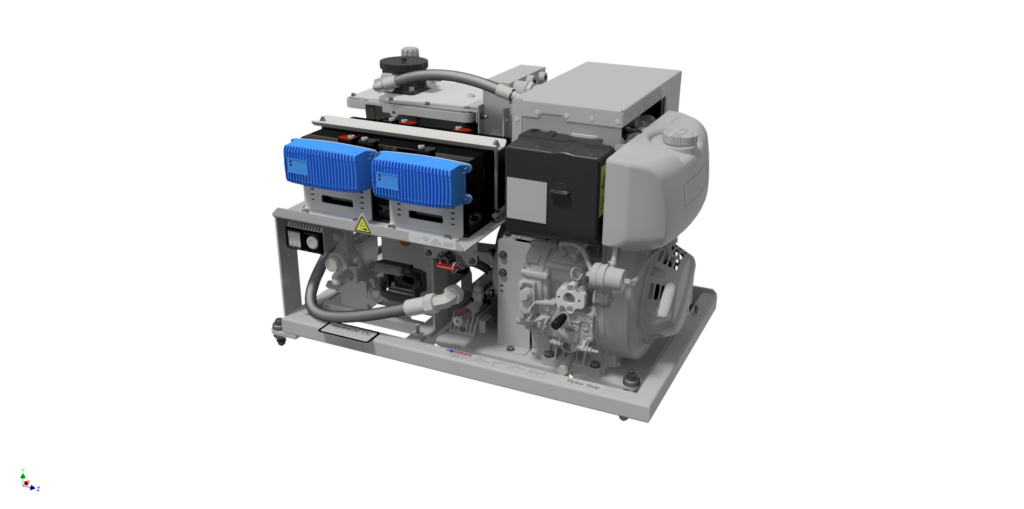

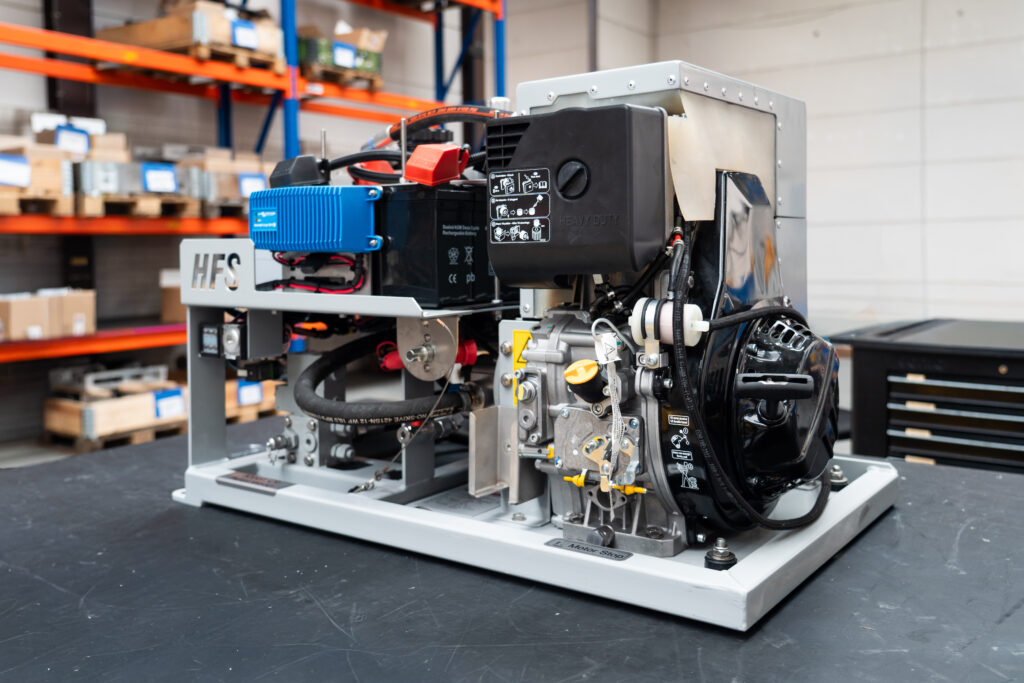

Diesel Power Pack
The Powerpack is engineered to provide autonomous power to Hose Layer Containers fitted with an HRU200 or HRU300. Under normal operating conditions, it can retrieve up to 5,000 metres of deployed 6” hose (50 coupled hose lengths of 100 metres each). When used in combination with an HRU200, hose retrieval speeds of up to 0–3 km/h can be achieved.
Main features
Full-functional alternative to an electrical power pack
Retrofitting existing autonomous containers is possible
Technical specifications
Engine type: 15 KD 440 E530
Engine power rating: 7kW @ 2600 rpm
Nominal hydraulic capacity: 15 l/min @ 125 bar (HRU200)
Engine cooling: Air
Electrical system voltage: 24 VDC, 24V/30A, 2x12V-40Ah
Number of cylinders: 1
Operating time at Nom. Capacity: min 3 hours
Dimensions: 593 x 548 x 603 mm
Weight: 165kg
Ambient Temperature Operation -10°C – +35°C
