The HydroSub 60 is a mobile pump unit driven by a powerful diesel engine with radiator cooling. It consists of a diesel-hydraulic power pack pump unit with a portable hydraulic driven submersible pump.

Design

The unit is compactly built in a skid-frame with light weight side panels and an anodized aluminium door.  This skid-frame is dimensioned as such, that it can easily be installed in any small vehicle. Inside the frame there is a storage space for either the standard submersible pump or the optionally available FloodPump.

The submersible pump will not be affected by waves or shallow water levels. Even in cases where there is a risk of an airlock due to an air bubble, the pump will maintain its operation.

Quick access to open water

The 30 meter hydraulic hose length guarantees access to almost all open waters without any capacity loss and has a reach up to 30 meter either vertical, horizontal or a combination of both.

Capacity

• Standard impeller: 1.500 lpm at 9,5 bar (400 GPM at 138 psi)
• Hi-Flow impeller (optional): 4.000 lpm at 2,5 bar (1050 GPM at 35 psi)
• FloodPump (optional): 20.000 lpm at 0,3 bar (5300 GPM at 4.3 psi)

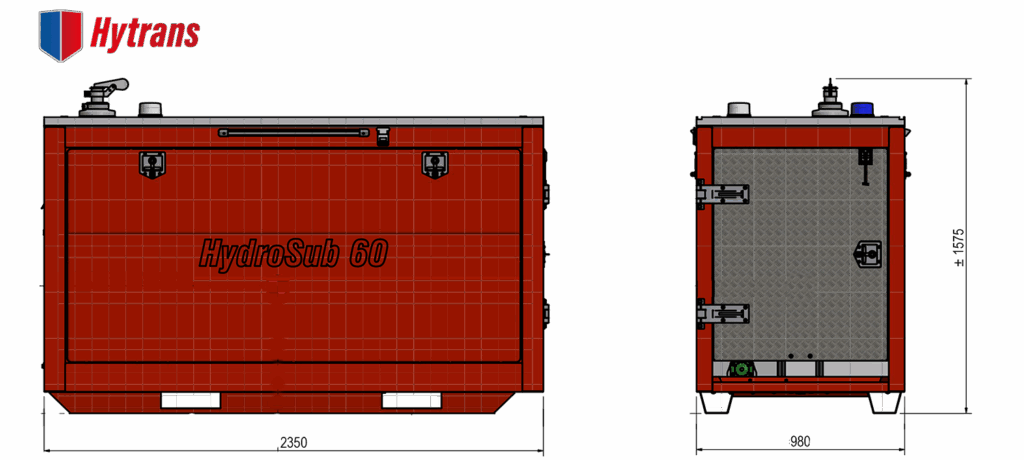

Dimensions

Control instruments

• Hytrans control system
• Vital parameters are monitored and logged (e.g. oil pressure, oil temperature, fuel level, motor temperature, etc.)
• Audible an visible alarms are generated when a parameter falls outside its setting
• Machine status light, surround illumination and working light
• Automatic water pressure regulation (option)
