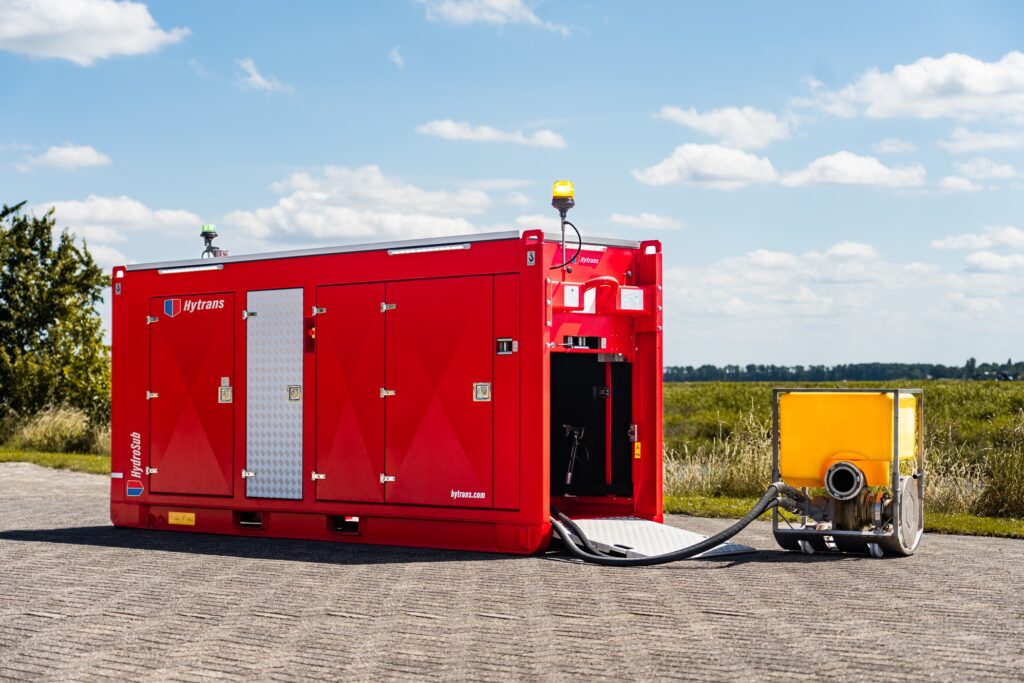

The HydroSub 150 is a mobile pumping unit driven by a powerful diesel engine with radiator cooling. It consists of a diesel-hydraulic power pack pump unit with a portable hydraulic driven submersible pump.

Design

The unit is built in a base skid-frame with stainless steel panels and an anodized aluminium door.  The submersible pump can be stored inside the frame during transport or storage of the unit.

The floating submersible pump will not be affected by waves or shallow water levels (min. 0,3 m). Even in cases where there is a risk of an airlock due to an air bubble, the pump will maintain its operation.

Access to open water

The 60 meter hydraulic hose length guarantees access to almost all open waters without any capacity or time loss and has a reach up to 60 meter either vertical, horizontal or a combination of both. The unit also has a hydraulical driven support winch to retrieve the submersible pump after deployment.

Capacity

• Standard impeller : 2.500 lpm at 14 bar (660 GPM at 200 psi) or
  3.800 lpm at 10 bar (1000 GPM at 150 psi)
• Hi-flow impeller (optional) : 8.500 lpm at 2,2 bar (2245 GPM at 32 psi)
• FloodModule for HS150 (optional): 50.000 lpm (13.200 GPM)

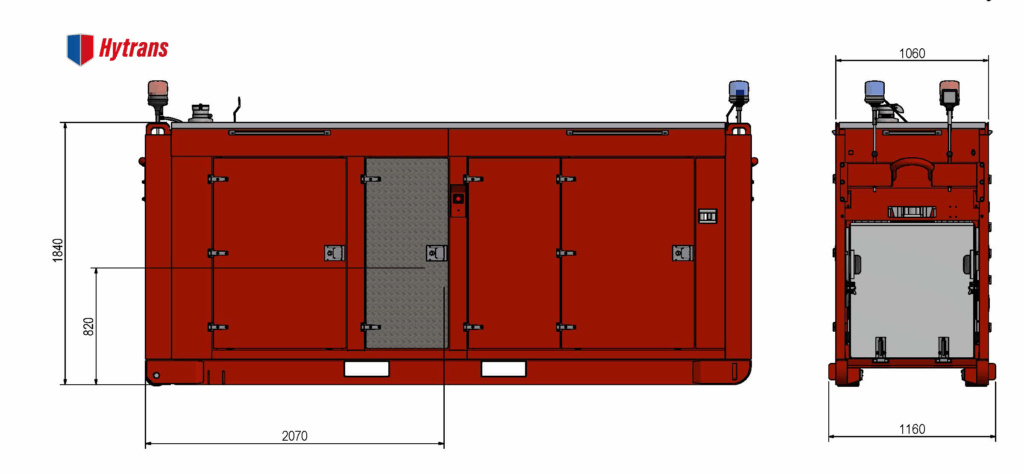

Dimensions

Control instruments

• Hytrans control system
• Vital parameters are monitored and logged (e.g. oil pressure, oil temperature, fuel level, motor temperature, etc.)
• Audible an visible alarms are generated when a parameter falls outside its setting
• Machine status light, surround illumination and working light
• Automatic water pressure regulation (option)
