Three submersible pumps

The HydroSub 1400 is a mobile pumping unit driven by a powerful marine diesel engine utilising a heat exchanger system which negates the requirements for a radiator and cooling fan unit. This results in lower operational noise levels and space savings inside the container.  However, the HydroSub 1400 is not available for countries where emission regulations are applicable.

It consists of three portable hydraulic driven submersible pumps and feed the main-boost pump fixed installed in the container pump housing. The unit is transported using a truck with hook arm lift off system.

Foam injection

Optional an integrated Hytrans PowerFoam system (HS1400F) is available, allowing foam premixing up to 1-3% or at 6% at reduced capacity. The electronically controlled, hydraulically driven foam pump provides accuracy and stepless choice of roam percentage.

Accessibility

The 60 meter hydraulic hose length guarantees access to almost all open waters at a combined distance up to 60 meter and/or 10-15 meter vertically.

Capacity

• At 10 meter or 32 ft pump lift: 45.000 lpm at 12 bar (11885 GPM at 175 psi)

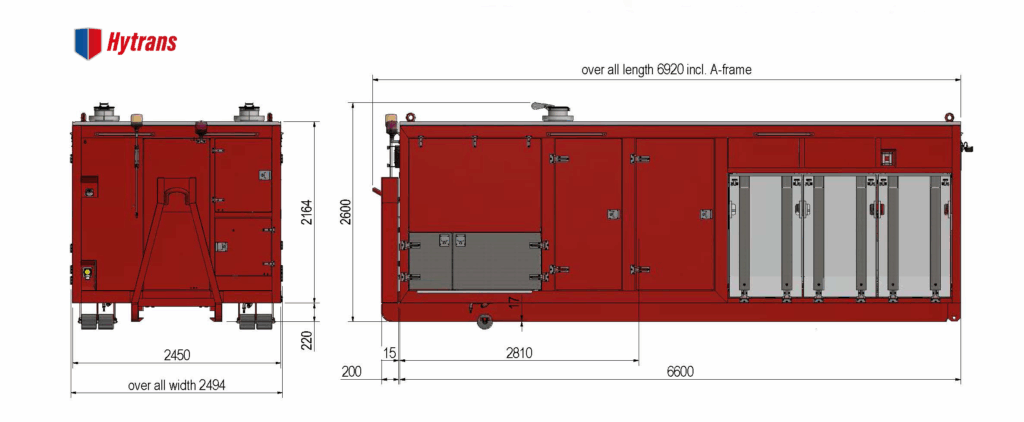

Dimensions

Control instruments

• Hytrans control system
• Vital parameters are monitored and logged (e.g. oil pressure, oil temperature, fuel level, motor temperature, etc.)
• Audible an visible alarms are generated when a parameter falls outside its setting
• Machine status light, surround illumination and working light
• Automatic water pressure regulation (option)
