The main goal for developing our FloodModule was to create a mobile unit providing flood relief on a large scale, driven by our HydroSubs. As it is an add-on system for emergency response teams and firebrigades it is a very efficient solution.

Contents of the FloodModule

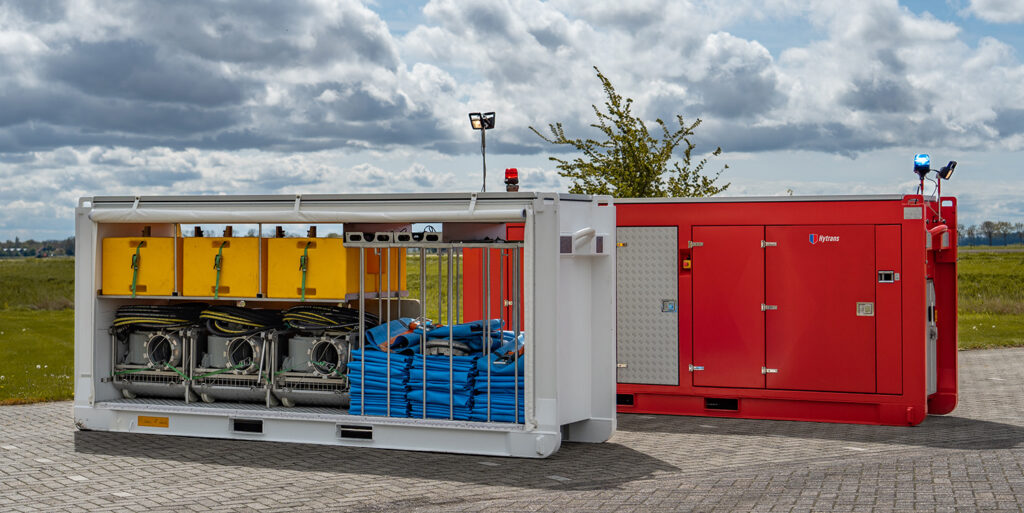

A FloodModule consists of multiple submersible FloodPumps, multiple lightweight 12” (300 mm) hoses, and hydraulic manifolds to connect the multiple FloodPumps to a single HydroSub. For the HydroSub 150 and HydroSub 250, all this is carried in a mini container that fits on the Hytrans DuoContainer system.

The special low-friction and lightweight 12″ FloodHose are made of PVC and can easily be deployed by only one person. The separate hose lengths are connected using a simple, patented coupling with a closing strap. As standard, 50 m of FloodHose is provided per FloodPump.

A flexible add-on system

The FloodModule is an add-on system to the HydroSub 150,  HydroSub 250, and the HydroSub 1200. By replacing the standard submersible pumps by the FloodPumps, the combination is capable of reaching the following capacities:

• HydroSub 60: flood capacity of 20.000 lpm (using one FloodPump)
• HydroSub 150: flood capacity of 50.000 lpm
• HydroSub 250: flood capacity of 30.000 lpm
• HydroSub 1200: flood capacity of 120.000 lpm (only available for regulated HydroSubs)

A solution you can trust

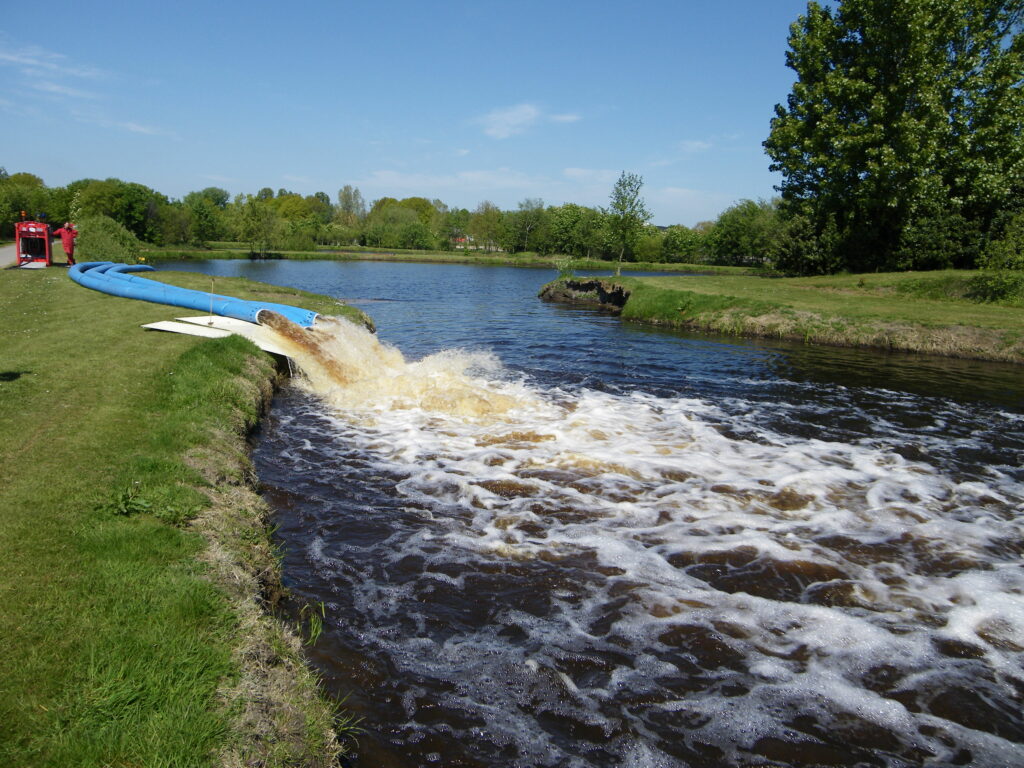

In case of floods you need to act quickly, ensuring your equipment works. The Hytrans FloodModule system provides exactly that. Its high capacity and ease of use make it a critical tool for any organization involved in flood relief.

For more information about our FloodModule or to discuss how this system can enhance your flood response capabilities, contact us.

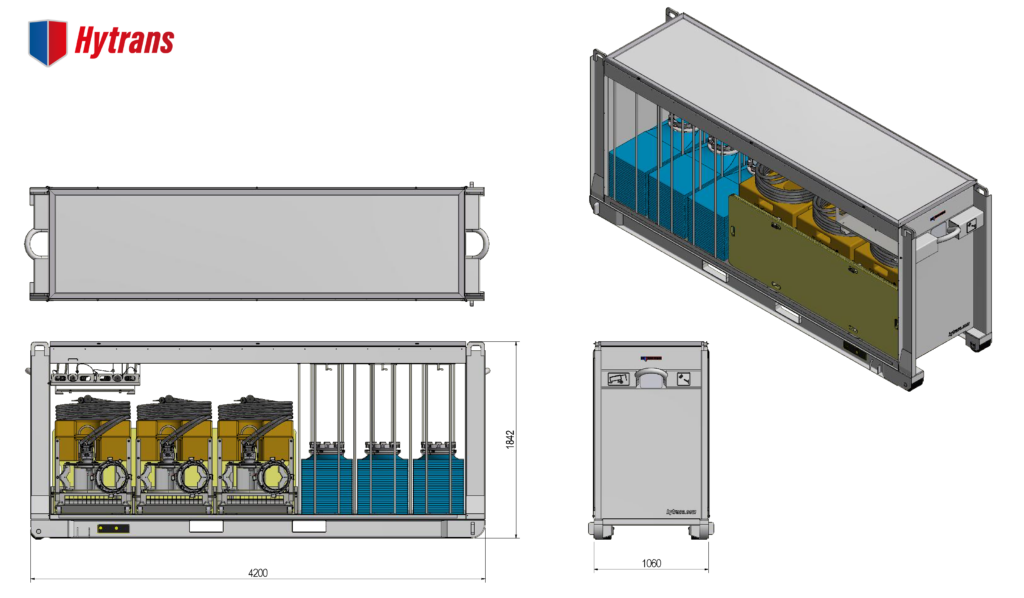

Dimensions of FloodModule for HydroSub 150

FloodModule product video
